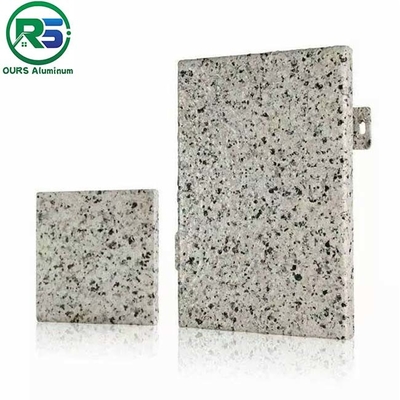

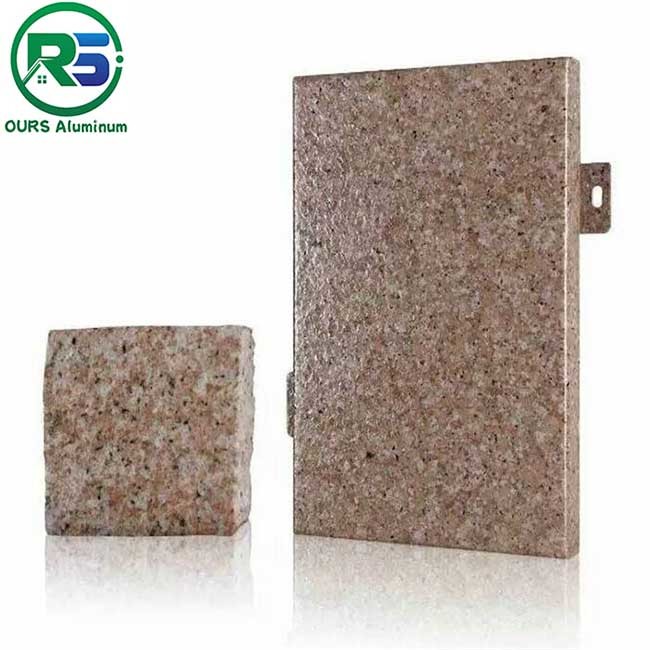

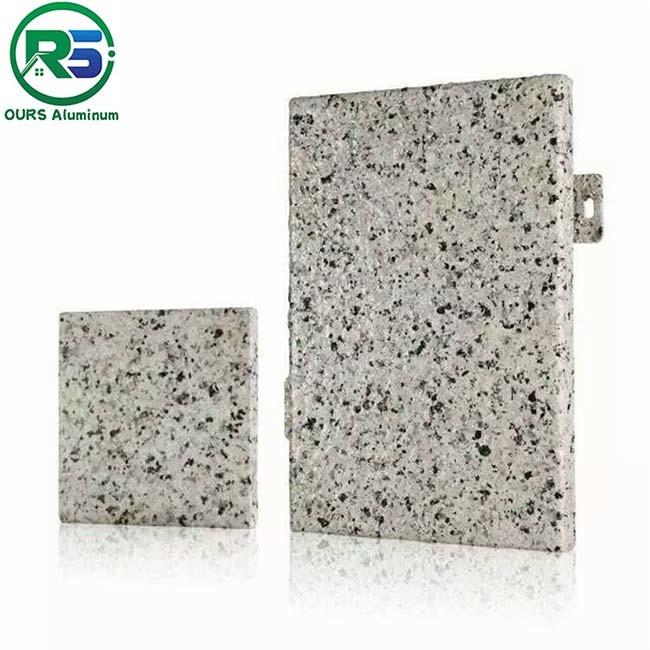

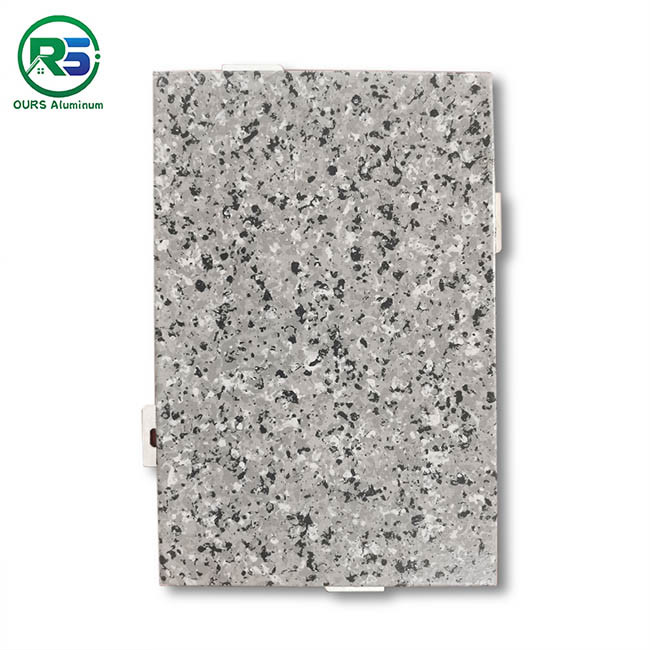

PVDF Coating Marble Grain 3D Aluminum Wall Panels Balconies For Exterior

Place of Origin CHINA
Brand Name Ours
Certification CE, ISO
Model Number N/A
Minimum Order Quantity 100 SQ.M.
Packaging Details air bubble film+ wood crates / accept customized package
Delivery Time 10-15 workday
Payment Terms T/T, L/C
Supply Ability 5000 SQ.M.

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Environment Friendly Process Technology Water-Jet Cutting, Etc
Size 4.0mm,Customized Usage Decoration Materials,Outdoor,Indoor
Supply Ability: 5000 Square Meter/Square Meters Per Week Surface PVDF,PPG
Panel Thickness 1.5-4mm Material Aluminum
High Light

PVDF Exterior Aluminum Wall Panels

,

Marble Grain Aluminum Wall Panels

,

PVDF exterior wall aluminum panels

Leave a Message
Product Description

Exterior PVDF Coating Marble Grain Aluminum 3D Wall Panels Balconies


Product  Description


The stone texture pattern is close to nature, beautiful and generous, has broke through the traditional single color style of decoration. Fresh and stylish, elegant and delicate, create a unique decoration style. The stone texture aluminum cladding is a high-grade metal decorative material, its main material is high grade aluminum alloy, based on the dimension, shape and structural form of the engineering design at site, after technical forming including CNC bending and so on, applying fluorocarbon spraying paint on the surface then cover with Italian stone texture film, through vacuum processing, the stone texture film is transferred and printed onto the fluorocarbon coating of the aluminum veneer.



 Advantages



1. stone design rich, delicate, lifelike effect.

2. the weight per unit area than the stone was reduced greatly, improve the safety level.

3. can reduce construction difficulty and cost, shorten the construction period.

4. good toughness, and not easily broken, moisture-proof, easy to clean.

5. strong plasticity, can be processed into various complex shapes, the back can be filled with thermal insulation, thermal insulation, sound absorption, sound insulation and other materials,can reduce energy consumption, the stone is incomparable.




Specification


Type Aluminum Wall panels Supply Ability:

5000 Square
Meter/Square Meters per Week

Place of Origin: Guangzhou, China Usage:

Interior/exterior; Indoor /outdoor


Colors: Red/Blue/White/Black/subject to user demand Lead Time: Within 20-25 days
Thickness 2.0mm,2.5mm,3.0mm,4.0mm,ect. Size/Design: Sizes and design are available according your detail drawings
Surface Treatment multi-layer PVDF coating involving international known paints e.g. PPG(USA), AKZO-NOBEL, Valspa as base materials Packing Details

1. air bubble film+ wood crates
2. carton+plywood
3. accept customized package

Service

Offer professional
Advice,OEM&ODM

Material suppliers Southwest alu &German Aluimported
Product code: N/A Guarantee: 15-20 years





Quick Details


1. Ceiling type: Flat, punched, curved, profiled
2. Project Solution Capability:Total solution for projects,graphic design, 3D model design
3. Available Thickness: 1.0~4.0mm,etc.
4. Surface treatment: Stone grain (stone grain painting/thermal transfer printing)

5. Aluminum alloy: 5052, 3003, 1100

6. Color: RAL color, Pantone color.




PVDF Coating Marble Grain 3D Aluminum Wall Panels Balconies For Exterior 0
The product is fabricated by three coating & one baking of PVDF paint.PVDF coatings is preferred among the fluoropolymers for architectural applications, they are commonly formulated with 70% PVDF resin and 30% acrylic resin into resin system. PVDF paint is suitable for building panels and other articles made from extruded and sheet metal which are intended for outdoor use. Projected life of the paint is expected to be more than twenty years.

Ours company successively introduced STON numerical control sheet metal equipment, German MILLER argon arc welding machine and Japan LanChi automatic electrostatic spraying system, all advanced in the world. Adopting high - quality alloy aluminum sheet, German HENKEL pretreatment agent, AKZO - NOBEL, PPG and Valspar PVDF coating, the company strictly observes requirements in ISO9001-2008 quality management system to bring product quality up to the internal control standard AAMA2605-98.


Application

Ours Aluminum Wall panels commercial building application:
- Shopping center, supermarket
- Outdoor facilities, gas station, toll station
- MTR station, railway station, airport, bus station
- School, stadium, education
- Office, conference room, exhibition room
- The lobby, corridor and bathroom of the building
- Canteen, restaurant, hotel
- Hospital, chemical laboratory, etc.
Welcome to contact us for more details, we are keen to wait for your consultation.
PVDF Coating Marble Grain 3D Aluminum Wall Panels Balconies For Exterior 1
